THÔNG SỐ KỸ THUẬT

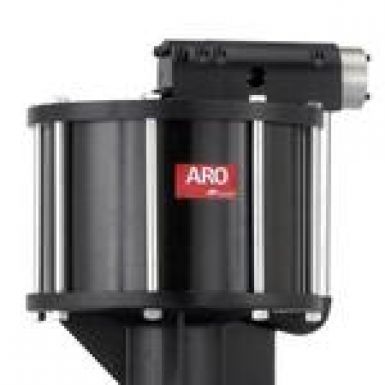

* Two - Ball Pumps
| Model |
Ratio |
Air Motor |
Max Flow ( LPM) |
Fluid Pressure ( Bar) |
| 61204X-X |
1:1 |
2" |
68.1 |
0-10.3 |
| 613112-XXF-C |
10:1 |
8" |
68.6 |
20.7-82.8 |
| 613123-XXF-C |
15:1 |
10" |
68.6 |
31.0-93.1 |
| 613124-XXF-C |
23:1 |
12" |
68.6 |
47.6-142.8 |
| 650408-X-B |
9:1 |
4-1/4" |
10.8 |
0-93.1 |
| 650409-X |
9:1 |
4-1/4" |
10.8 |
0-93.1 |
| 650453-X |
9:1 |
4-1/4" |
10.5 |
0-93.1 |
| 650483-X4X |
11:1 |
4-1/4" |
13.9 |
22.7-120.4 |
| 650484-X4X |
22:1 |
4-1/4" |
7.2 |
45.5-235.2 |
| 650485-X4X |
30:1 |
4-1/4" |
4.9 |
62.0-310.2 |
| Model |
Ratio |
Air Motor |
Max Flow ( LPM) |
Fluid Pressure ( Bar) |
| 650683-X4X |
23:1 |
6" |
14.0 |
47.6-238.0 |
| 650684-X4X |
45:1 |
6" |
7.3 |
93.0-376.3 |
| 650685-X4X |
60:1 |
6" |
5.4 |
124.1-414.0 |
| 650863-X4D-B |
5:1 |
10" |
23.7 |
91.8-306.1 |
| 650866-XXD-B |
10:1 |
8" |
68.6 |
20.7-82.8 |
| 650867-XXD-B |
15:1 |
10" |
68.6 |
31.0-93.1 |
| 650883-X4X-B |
40:1 |
8" |
14.3 |
82.2-342.6 |
| 650963-X4D-B |
65:1 |
12" |
23.7 |
134.5-403.4 |
| 650967-XXD-B |
23:1 |
12" |
68.6 |
47.6-142.8 |
| NM2202X-X1-X31 |
2:1 |
2" |
8.14 |
0-24.2 |
| Model |
Ratio |
Air Motor |
Max Flow ( LPM) |
Fluid Pressure ( Bar) |
| NM2304A-X1-X11 |
4:1 |
3" |
8.0 |
0-41.4 |
| NM2304B-X1-X11 |
4:1 |
3" |
8.0 |
0-41.4 |
| NM2318B-13-X43 |
18:1 |
3" |
2.3 |
0-186.2 |
| NM2328A-11-X11 |
28:1 |
3" |
1.4 |
0-289.7 |
| NM2C23H-A1-C6F |
23:1 |
12" |
68.6 |
142.8 |
* Four - Ball Pumps
| Model |
Ratio |
Air Motor |
Max Flow ( LPM) |
Fluid Pressure ( Bar) |
| 650439-X4B |
2:1 |
4-1/4" |
80.6 |
4.1-21.5 |
| 650639-X4B |
4:1 |
6" |
80.6 |
8.3-43.7 |
| 650640-X4B |
3:1 |
6" |
110.8 |
6.2-31.5 |
| 650839-X4G-B |
7:1 |
8" |
88.8 |
14.5-69.6 |
| 650840-X4-B |
5:1 |
8" |
124.0 |
10.3-48.4 |
* Chop-Check Pumps
| Model |
Ratio |
Air Motor |
Max Flow ( LPM) |
Fluid Pressure ( Bar) |
| 650491-X43-B |
12:1 |
4-1/4" |
12.3 |
0-143.8 |
| 650492-X43-B |
23:1 |
4-1/2" |
6.9 |
0-254.5 |
| 650691-X43-B |
23:1 |
6" |
12.3 |
0-290.7 |
| 650692-X43-B |
46:1 |
6" |
6.9 |
0-516.2 |
| 650698-C43 |
65:1 |
6" |
5.1 |
0-515.5 |
| 650871-XXE-C |
13:1 |
8" |
46.3 |
26.9-131 |
| 650875-XXE-C |
20:1 |
10" |
39.7 |
41.4-155.2 |
| 650888-XXD |
28:1 |
8" |
22.7 |
57.9-231.7 |
| 650889-XXD |
44:1 |
10" |
22.9 |
91.0-273.1 |
| 650891-XXD-C |
44:1 |
8" |
14.3 |
91-411.3 |
| Model |
Ratio |
Air Motor |
Max Flow ( LPM) |
Fluid Pressure ( Bar) |
| 650671-XXE-C |
30:1 |
12" |
46.3 |
62.1-224.1 |
| 650989-XXD |
65:1 |
12" |
22.9 |
134.5-403.4 |
| 67120-P43 |
43:1 |
4-1/4" |
2.8 |
0-451.7 |
| 67121-P43 |
43:1 |
4-1/4" |
2.8 |
0-451.7 |
| NM2322E-XX-P4X |
22:1 |
3" |
3.7 |
0-277.6 |
| NM2322F-XX-P4X |
22:1 |
3" |
3.7 |
0-277.6 |
